An engineer working for a private telecommunication company with an employee ID 4419 90 979 is installing a pair of Nexus 7000 Series Switches and must deploy the solution with these requirements:

1.

The environment must be separated for test and production purposes

2.

The separation should include control, data and management plane with fault domain isolation and improved security

3.

The test environment needs only F2 series line cards and a maximum of 256 VLANs

Which set of actions meets these requirements?

A. Use VRF faQUMIife environments Configure allow feature set for both VRFs Enable limit-resource vlan minimum for the test VRF

B. Use VDC for each of the environments Configure limit-resource module-type functionality for the test VDC Enable limit resource vlan for the test VDC.

C. Use VDC for each of the environments Configure allow feature set for both VRFs Enable limit-resource vlan maximum for the test VRF

D. Use VRF for each of the environments Configure limit-resource module-type functionality for the test VDC. Enable module-type for the VRF

The user traffic destined to all web servers located in the data center must pass first through a set of firewalls for deep packet inspection. A network architect must design the Cisco Intelligent Traffic Director (ITD) deployment that meets these requirements:

1.

The firewalls are connected to a set of two Cisco Nexus switches to provide stateful handling of traffic.

2.

The ITD service is provided for inside and outside segments of the firewall. Which ITD deployment mode must be implemented to meet these requirements?

A. server load-balancing deployment mode

B. server vPC deployment mode

C. one-arm deployment mode

D. sandwich deployment mode

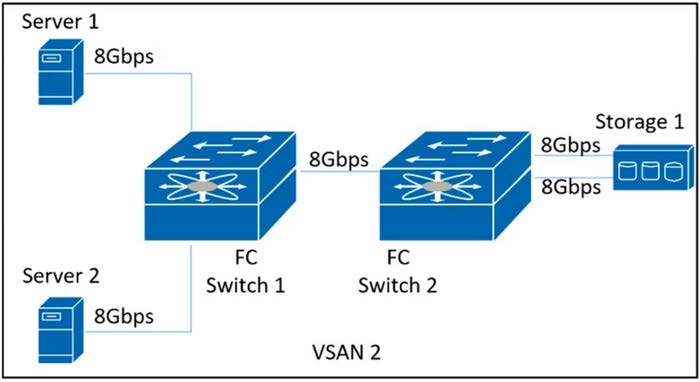

Refer to the exhibit.

A customer runs an Online Transaction Processing (OLTP) application on Server1. The application generates a small number of transactions and requires low storage latency. Server2 is a backup server that performs backups twice a day During the backup window, the OLTP application experiences high-latency spikes that affect the application performance The customer must meet these requirements

1.

aintain consistent low I/O latency for the OLTP server.

2.

uarantee I/O throughput for the OLTP server during backup time

3.

llow the customer to keep the existing hardware. Which action must be taken to meet these requirements?

A. Apply a traffic shaper to the FC Switch 1 interface that is facing the server

B. Create a SAN port channel between FC Switch! and FC Switch2.

C. Add another 8G link to the Serverl and create F-Port-channel

D. Configure QoS and scheduler for data traffic on both Fibre Channel switches

A network engineer must design a Cisco HyperFlex solution based on these requirements:

1.

two clusters in the main data center consisting of five HyperFlex nodes

2.

one edge node tor the remote branch

3.

cluster nodes that use one rack unit of space

Which two devices should be used in the remote branch cluster for this design? (Choose two.)

A. HX240c

B. Fabric Interconnect 6300

C. HX220c

D. Gigabit Ethernet Switch

E. UCS B200

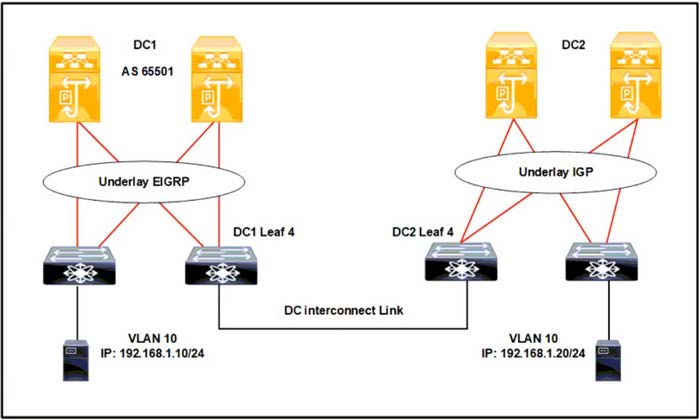

Refer to the exhibit.

The data center DC1 uses VXLAN technology. The company asked a service provider to design another data center called DC2 and stretch EVPN information between the data centers based on the same technology. The fabric requires:

1.

endpoint information propagated end-to-end across both data centers

2.

misconfiguration replicated from DC1 to DC2

Which actions must the design include in DC2 to meet these criteria?

A. Set BGP AS to 65500. Configure RIP as an underlay IGP.

B. Set BGP AS to 65501. Configure RIP as an underlay IGP.

C. Set BGP AS to 65501. Configure EIGRP as an underlay IGP.

D. Set BGP AS to 65500. Configure IGRP as an underlay IGP.
