What is one requirement to combine Aruba 5400R z|2 Series switches in a Virtual Switching Framework (VSF) fabric?
A. Both ofthe members must have two management modules.
B. The switches must operate in v3-module only mode; any modules of an earlier version are automatically disabled.
C. The interfaces assigned to the VSF link must be pre-configured as part of a link aggregation.
D. One of the switches must be an Aruba 5412R switch, while the other member can be any switch in the 5400R series.
Which solution provides firmware update automation for Aruba APs and switches?
A. Aruba CIearPass
B. Aruba Virtual Switching Framework (VSF)
C. Aruba Activate
D. Aruba AirWave
Refer to the exhibit.
The exhibit shows settings for a WLAN on an Aruba Instant cluster To which VLAN is wireless user traffic assigned?
A. to the untagged VLAN on switch ports connected to the Instant APs
B. to the VLAN defined for wireless users in Aruba AirWave
C. to the default VLAN defined in the System settings in the Instant
D. to the default VLAN on switches connected to the Instant APs
A network administrator connects several newAruba Instant APs (at factory defaults) to a switch. After
waiting several minutes for the cluster to form, the administrator is ready to provision the cluster. The
VLAN on the ports connected to the APs has no DHCP services.
How can the administrator contact the Instant UI and provision the APs with static IP addresses?
A. Connect to the Instant SSID and open a Web browser.
B. Access the default IP address, 192.168.1.1, from a device connected in the AP VLAN .
C. Access the cluster using Aruba Activate.
D. Access https://vc.arubanetworks.com from a device connected in the AP VLAN.

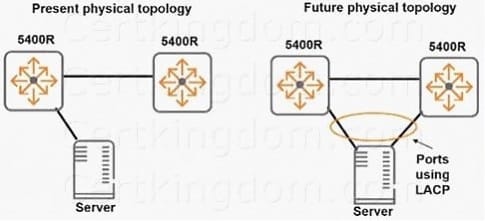

Refer to the exhibit.
The exhibit shows the physical connection between two Aruba 5400R switches and a server The network administrator is concerned about redundancy and wants to implement a solution like that shown on the right side of the exhibit. The administrator plans to use an LACP link aggregation with both links active. What must the administrator do first?
A. Configure an LACP link aggregation between the switches.
B. Enable dynamic link aggregation globally on the switches.
C. Combine the switches into a Virtual Switching Framework (VSF) fabric.
D. Configure the same operational key on both the switches.
What do all devices in the same AirWave folder have in common?
A. They share firmware auditing settings.
B. They are viewed together in the APs/Devices page
C. They share a configuration template.
D. They have the same monitoring settings, such as polling settings.
A network administrator wants to form a cluster with several Aruba Instant APs (|APs). What must the administrator verify?
A. that all APs are pre-configured with WLANs with the same SSID
B. that all APs are operating on the same radio channel
C. that all APs are the same model
D. that all APs are connected in the same subnet
A company has a cluster of Aruba Instant APs (|APs). The company wants to add a new IAP to the
cluster.
What should network administrators ensure before they connect the new IAP?
A. that the DHCP server has the correct options 60 and 43
B. that the new IAP has been provisioned with an IP address and the IP address of the cluster virtual controller (VC)
C. that Aruba Activate is configured with provisioning rules for the IAP
D. that the switch port for the AP is untagged for the same VLAN as the current cluster
A company needs a modular switch that can be combined with another modular switch into a single logical fabric. Which ArubaOS switch series meets these criteria?
A. Aruba 2930F Series
B. Aruba 3800 Series
C. Aruba 3810 Series
D. Aruba 5400R Series
A network administrator configures LLDP-MAD on an Aruba Virtual Switching Framework (VSF) fabric The administrator needs to enter an SNMP community string after v2c in this command: Swich(config)# vsf Ildp-mad ipv4 10.1.0.2 v2c
Which SNMP community string should the administrator enter?
A. one configured for the VSF fabric on AirWave.
B. one configured on the device at 10.1.0.2.
C. one configured on the standby member in the fabric.
D. one configured on the VSF fabric as a whole.
An ArubaOS switch has no passwords or user accounts configured on it. A network administrator then enters these commands: Switch(config)# password manager user-name admin1 plaintext mysecret1 Switch(config)# password manager user-name admin2 plaintext mysecret2 Switch(config)# aaa authentication local-user admin3 group Level-15 Password plaintext New password for admin3: hpe Please retype new password for admin3: hpe Which users can access the switch CU and use enable and global configuration commands?
A. Admin1 and admin2
B. admin2 and admin3
C. admin1 and admin3
D. admin1 admin2, and admin3
A company wants to deploy Aruba Instant APs (|APs) at branch offices and have a configuration
automatically deployed to the APs.
How can network administrators achieve this goal?
A. Set up an Aruba Activate account and upload configuration templates and provisioning rules to it.
B. Set up configuration templates on AirWave and Aruba Activate provisioning rules that direct the Aps to AirWave.
C. Configure Aruba CIearPass to discover the APs and push configurations to them.
D. Upload a configuration template on a management station and then connect that station to the Instant SSID.
A company wants all wireless users who connect to a WLAN to authenticate with an individual username
and password. The company also wants to control which wireless devices are allowed to connect to the
WLAN.
Which security option on Aruba APs meets these criteria?
A. WPA/WPA2 Personal and IVIAC authentication
B. WPA/WPA2 Enterprise and IVIAC authentication with the IVIAC authentication fail-thru option
C. Open and IVIAC authentication with a closed SSID
D. WPA/WPA2 Enterprise and IVIAC authentication before 802.IX option
An Aruba Virtual Switching Framework (VSF) fabric has 10GbE interfaces assigned to its VSF link. The
network administrator wants to change the link to use 40GbE interfaces.
Which procedure follows the best practices and requirements to set up the VSF links?
A. Shut down the standby member, remove the VSF link, and then re-create the link with only 40GbE interfaces.
B. Add the 40GbE interfaces to the VSF link, and then remove the 10GbE interfaces from the link Create an LACP link aggregation on the 40GbE interfaces, and then add them to the VSF link.
C. Create a second VSF link that uses the 40GbE interfaces, and then remove the first VSF link.
Which Aruba solution can push a configuration to a factory default device connected to the network?
A. AirWave
B. C|oudVirtuaIization
C. Virtual Switching Framework (VSF)
D. Intelligent IVIanagement Center
