Refer to the exhibit.

An architect has planned the wireless and wired access layers for a network upgrade. The entire solution

must support 9,000 wireless devices and 2,250 wired endpoints.

The campus core must meet these requirements:

no more than 4:1 oversubscription on the links to the data center

switch-level redundancy near instant failover if one core switch fails link aggregations between access layer and core same switch software used across the entire campus

Which exhibit shows a campus core that meets the customer needs?

A.

B.

C.

D.

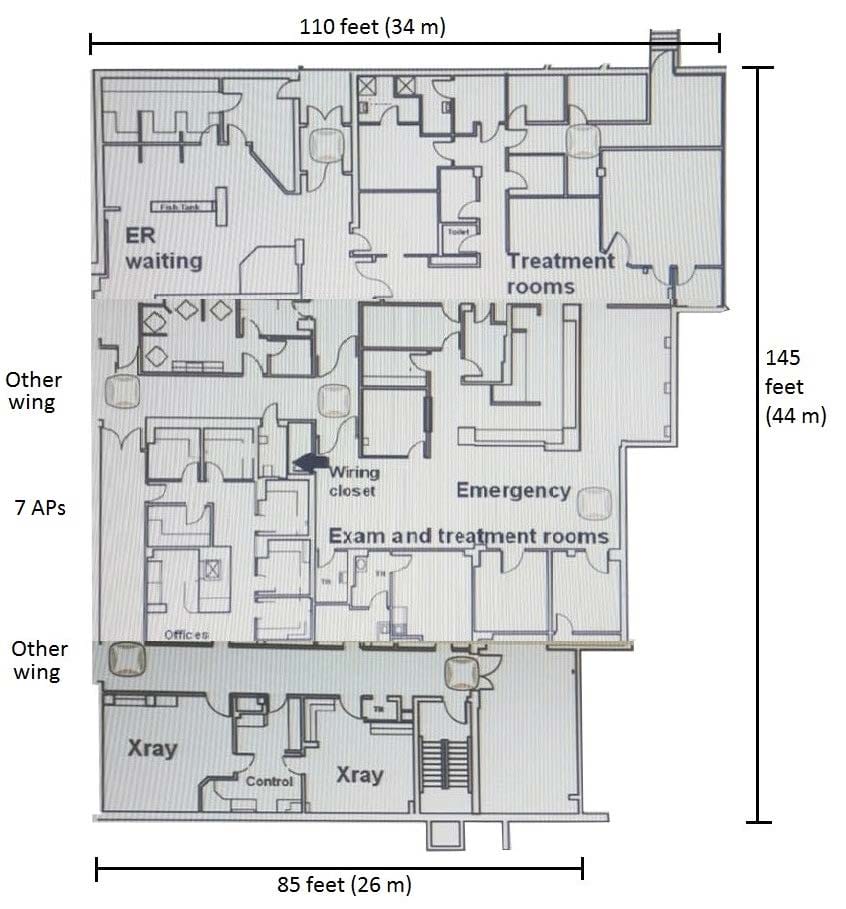

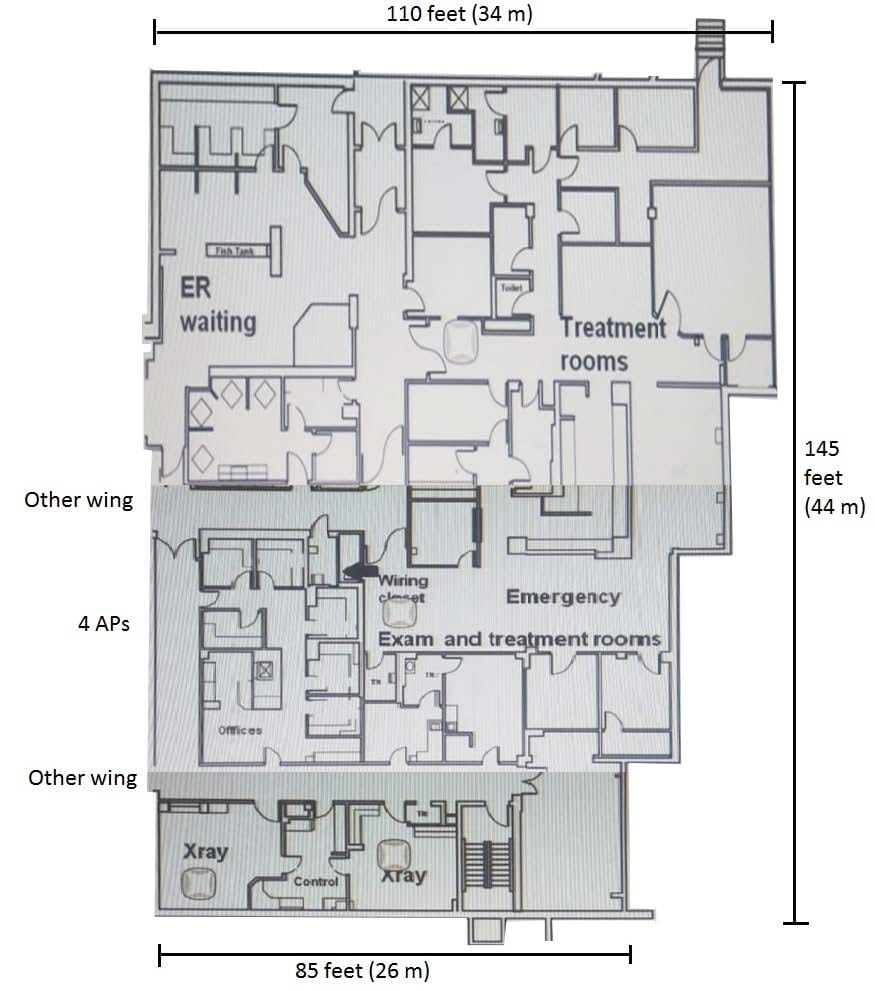

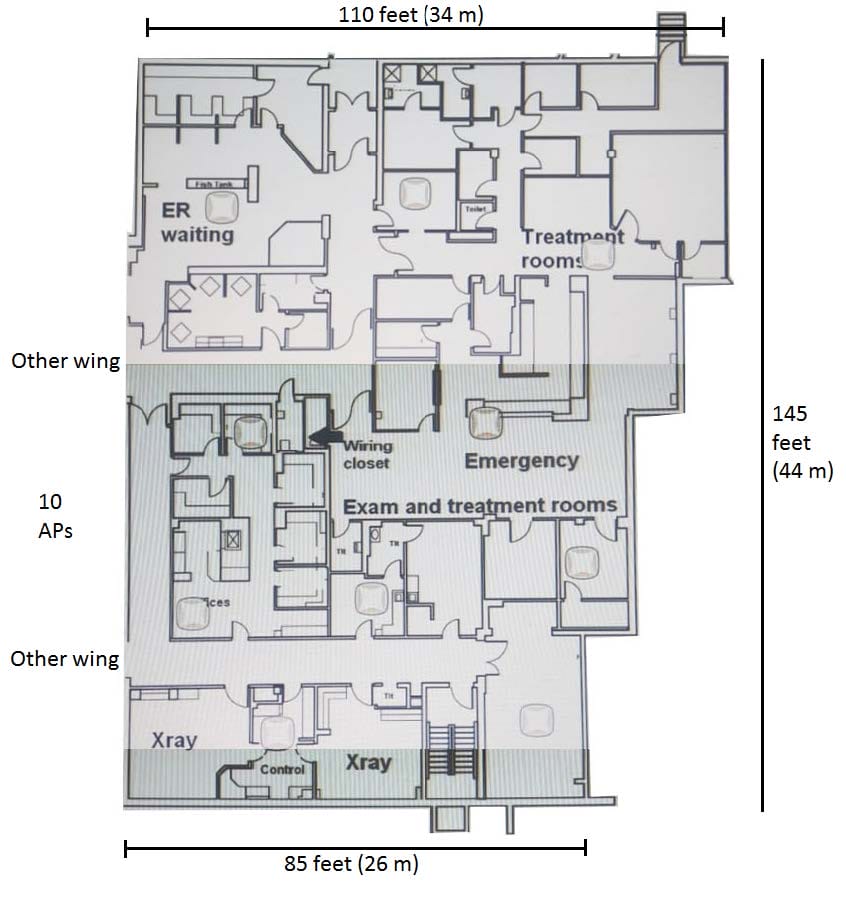

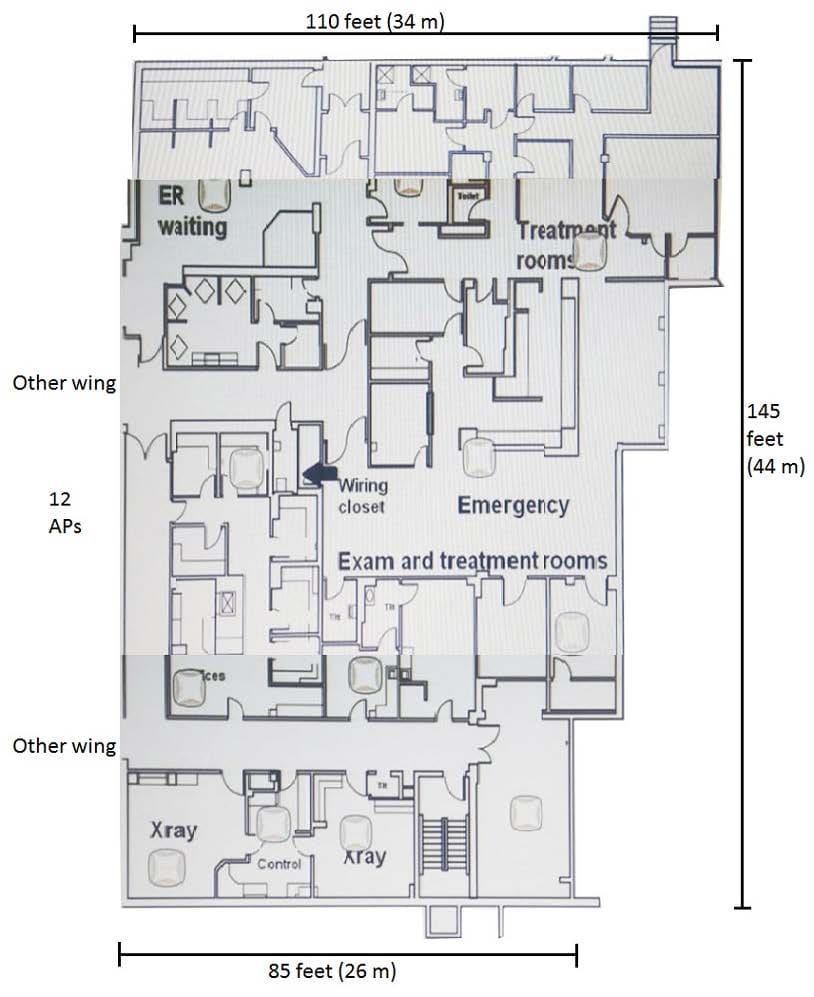

A hospital needs an upgrade to 802.11ac for its wireless network, which needs to provide complete coverage. The hospital has a concrete exterior and uses drywalls for all of the interior walls with a few exceptions as mandated for safety. The building has 10 foot (3m) ceilings. The legacy APs were deployed in the hallway, but the customer is open to deploying APs in any room such as reception areas, patient rooms, operating rooms, treatment rooms, and lounges. The wireless network must support wireless medical devices, voice communicators for medical staff, laptops in nurse stations, medical staff tablets, and visitor and patient personal devices. All of these devices support both the 2.4GHz and 5GHz band. The exhibits below show one wing of one floor of the hospital. This wing is about 14,000 square feet (1300 sq. m). This area has up to: 40 concurrent patients and visitors, who might have up to two devices 40 concurrent staff members, who might have up to three devices About 100 medical and other types of wireless devices

Several of these wireless medical devices are in the X-ray and X-ray control rooms. The architect has already planned to place APs in stairwells on another floor.

Which AP plan for this wing of this floor meets the customer needs?

A.

B.

C.

D.

A customer has a campus that has expanded to several buildings. The buildings are between 100 and 200

feet (30 m and 61 m) apart and connected with SM fiber. The customer currently has instant APs (IAPs)

clusters on several floors of several buildings. The customer has consolidated central resources in a small

data center in one of the buildings.

The customer would like a more centralized architecture in which all wireless traffic is tunneled to the data

center and IAPs are managed centrally.

What should the architect recommend?

A. Deploy Aruba MCs in a central location, and convert IAPs to CAPs.

B. Purchase a license for a Virtual Mobility Master (VMM).

C. Deploy Aruba AirWave in a central location.

D. Purchase a subscription for Aruba Central device management.

An indoor sports stadium has 5,000 seats in two rings:

The stadium has a ceiling height of 72 feet (22 m).

There is a catwalk around the perimeter of the stadium that is 54 feet (13 m) from the floor.

There are two scoreboards at either and of the stadium.

The construction of the stadium is concrete and steel.

The customer has indicated a preference for overhead coverage, and the wireless network should support

3500 concurrent clients. The architect plans to install the APs on the catwalk to service sections of the floor

below.

Which type of antennas are recommended for the APs that provide the overhead coverage?

A. high gain directional

B. high gain omnidirectional

C. downtilt

D. Yagi

Case study

A retailer needs a wireless and wired network upgrade, as well as an authentication and access control solution for a network that includes a main office with a three-floor building and six branch sites. The branch users all use resources at the main corporate office. Branch office employees will use wireless connections. At the main office, employees use wired and wireless connections. The customer wants the strongest authentication for employee wireless connections. It is also important that the MC role-based firewall can implement consistent access controls on employee connections no matter where the employees connect and no matter how they connect (wirelessly or, at the main site, wired). The customer also needs to provide complimentary wireless access for guests. Guest should be redirected to a portal, through which they can register and login. The customer would like two SSIDs, CompanyXEmployee and CompanyXGuest. The company wants to divide employees in two groups, managers and staff. In the corporate network, managers should only have access to Server Group Managers and staff should only have access to Server Group Staff. Each server group includes necessary services such as domain and DHCP, as well as servers that the employees access to do their jobs. All employees should also have access to the Internet. Guests should only have HTTP and HTTPS access, and only to the Internet.

The customer has: a maximum of 1000 employee devices a maximum of 100 guest devices at the same time 500 devices on wired ports at the main site, which will be supported by 12 new AOS-Switches (mostly employee laptops, as well as a few non-802.1X capable printers, which should just communicate with print servers)

The devices used by employees include 450 company-issued laptops, which the company wants to screen for security issues and violations of security policies. All authentications are assumed to be concurrent.

To fulfill the requirements for the wireless network upgrade, the architect plans to propose: 5 RAPs at each of 6 branch sites 60 APs at the main site

The architect will also propose an MM and ClearPass. The architect still needs to plan the Mobility Controllers (MCs). The customer requires high availability for wireless services and redundancy for the MCs. If a single MC fails, the network must continue to function without impact. If an MC fails, the customer must also receive a replacement component for the failed component by the next business day so that their IT staff can install it and get the network back to normal operation as soon as possible. Software upgrades must also be seamless, without the introduction of any downtime for wireless services, and the customer needs to be able to obtain the latest software over the lifetime of the solution for the next several years.

Which plan for the VLANs assigned to users at the main site follows the best practices? (Note that the infrastructure could have additional VLANs in various locations; this plan refers only to user VLANs.)

A. VLAN 10 for wired and wireless manager devices; VLAN 11 for wired and wireless staff devices; VLAN 12 for all wireless guest devices

B. VLAN 10-12 for wireless employee devices on Floors 1-3 (divided by floor); VLANs 13-15 for wireless guest devices on Floors 1-3; VLANs 16-18 for wired employee devices on Floors 1-3

C. VLAN 10 for all wireless devices; VLANs 12-14 for wired employee devices on Floors 1-3 (divided by floor)

D. VLAN 10 for wireless employee devices; VLAN 11 for wireless guest devices; VLANs 12-14 for wired employee devices on Floors 1-3 (divided by floor)
