HPE6-A41 Online Practice Questions and Answers

Refer to the exhibit.

What should the network administrator do to permit Switch-1 to route traffic from a client in 10.1.11.0/24 to a client in 10.1.12.0/24?

A. Enable proxy ARP.

B. Enable IP routing.

C. Configure a static route to 10.1.11.0/24 and a static route to 10.1.12.0/24.

D. Enable OSPF routing on VLAN 11 and on VLAN 12 in the same area.

Refer to the exhibit.

Originally, all four switches had the same region configuration. VLAN 14 was added to Switch_D and then mapped to instance 2.

How does this affect the MSTP topology?

A. Load sharing is lost, one of the uplinks is blocked for all traffic on Switch_C and Switch_D.

B. Load sharing is lost, one of the uplinks is blocked for all traffic on Switch_D

C. All connectivity is lost, both uplinks are blocked on Switch_D.

D. A Layer 2 loop exists and will cause sporadic connectivity issues.

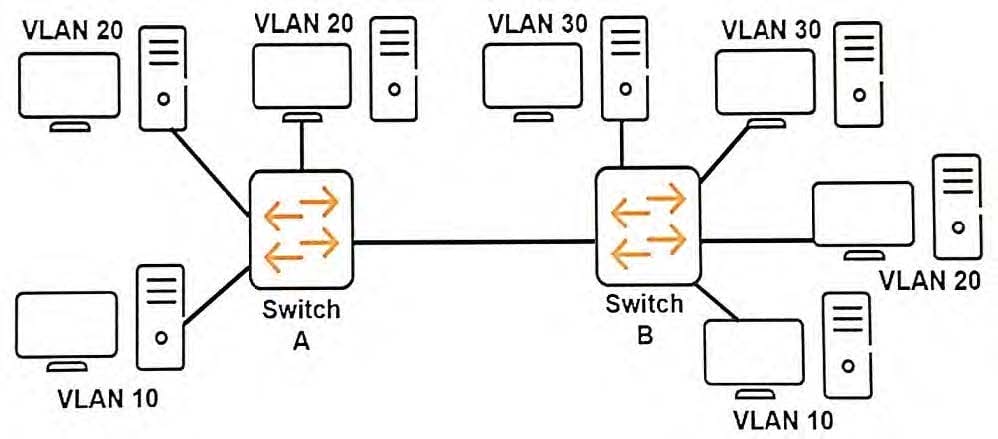

Refer to the exhibit.

The network consists of two ArubaOS switches with routing disabled.

How should the network administrator configure the link between Switch A and Switch B to ensure that all hosts can communicate to all the other hosts within their respective VLANs?

A. tagged for VLAN 20 and tagged for VLAN 30

B. untagged for VLAN 10 and tagged for VLAN 30

C. tagged for VLAN 10 and tagged for VLAN 20

D. untagged for VLAN 10, untagged for VLAN 20, and tagged for VLAN 30

A network administrator needs to configure a link aggregation on an ArubaOS switch.

For which type of link aggregation is the administrator required to enter the lacp command in the interface context?

A. a distributed LACP link aggregation

B. a dynamic LACP link aggregation

C. a static LACP link aggregation

D. a manual LACP link aggregation

Refer to the exhibit.

A network administrator views the configuration files on an ArubaOS switch and sees the output in the exhibit. The administrator enters this command: Switch# boot system flash primary config config2

After the switch boots, the administrator makes some configuration changes and saves the configuration with the write memory command. The administrator then enters this command: Switch# boot

After the switch boots, the configuration changes just made are not present.

How can the administrator restore the configuration with the changes?

A. Use the boot set-default command to configure the switch to use the secondary software. Then reboot the switch.

B. Reboot the switch and interrupt the boot process. Find the temporary file with the configuration changes and apply that file to the startup-config.

C. Rename the config2 file to config1. Then reboot the switch.

D. Use the startup-default command to configure the switch to use the config2 file with the primary software. Then reboot the switch.

Refer to the exhibit.

Endpoint A sends broadcast ARP requests.

Where are these requests received?

A. at EndpointC

B. at EndpointB

C. at EndpointB, at EndpointC, and at EndpointD

D. at EndpointB and at EndpointC

A network administrator has copied new software to an ArubaOS switch and placed this software in the secondary flash location. The switch is currently booting from the primary location. The administrator wants the switch to start using the new software.

What should the administrator do to accomplish this?

A. Reboot the switch, which automatically causes the switch to use the newer software.

B. Execute the command to boot the system from the secondary flash.

C. Rename the secondary software as the primary software.

D. Copy the secondary software to the primary software slot.

A network administrator needs to set up a static LACP link aggregation. How should the administrator configure the VLAN settings for the link aggregation?

A. Configure the VLANs on the physical interface with the lowest port ID before link aggregation setup.

B. Configure the VLANs on both physical interfaces after link aggregation setup.

C. Configure the VLANs on the link aggregation interface after the link aggregation setup.

D. Configure the VLANs on both physical interfaces before link aggregation setup.

A network administrator connects an Aruba Instant AP (IAP) to an ArubaOS switch but cannot connect the AP to the Instant cluster that exists. The administrator wants to check the IAP management IP address and software version from the ArubaOS switch CLI. To obtain this information, what should the administrator ensure is enabled on the switch and switch interfaces?

A. SNMP

B. ARP

C. Device profiles

D. LLDP

A network administrator creates a local user account and assigns that account to the Level-9 authorization group. The administrator tests the group assignment and is able to successfully log in with the local user credentials. However, the administrator is able to enter all the commands rather than only the commands permitted by the Level-9 group.

How can the administrator resolve this issue?

A. Set an operator password.

B. Set the command access level to enable.

C. Set the command access level to all.

D. Set command authorization to local.

Which standard for wireless connectivity supports the fastest data rates and Multi-User Multiple Input/ Multiple Output (MU MIMO)?

A. 802.11a

B. 802.11ac

C. 802.11g

D. 802.11n

A network administrator wants to pre-configure new MSTP region settings on ArubaOS switches, and then apply the new settings at a later time. How can the administrator pre-configure the settings?

A. Change the MSTP region name after the new settings are configured.

B. Create a second spanning tree region on the switch and apply the settings to this region.

C. Use the pending option in the spanning-tree commands.

D. Change the MSTP region revision number after the new settings are configured.

A network administrator wants to see how much power an Aruba AP has dynamically requested from an ArubaOS switch port. Which information should the administrator look at?

A. LLDP with the use of the show lldp info remote-device command

B. interface with the use of the show interface command

C. device class with the use of show system power-supply command

D. device profile with the use of the show device-profile status command

A company needs a switch that supports 10GbE and 40GbE for its mid-sized campus. The company prefers stackable, or fixed port, switches over modular switches. Which ArubaOS switch series best meet these needs?

A. Aruba 2530

B. Aruba 2930F

C. Aruba 3810

D. Aruba 5400R

Refer to the exhibit.

Which feature should the network administrator configure on the Virtual Switching Framework (VSF) fabric to prevent issues if Links 1 and 2 fail?

A. Graceful OSPF (non-stop forwarding)

B. Multi-Active Detection (MAD)

C. Distributed trunking

D. Virtual Router Redundancy Protocol (VRRP)
