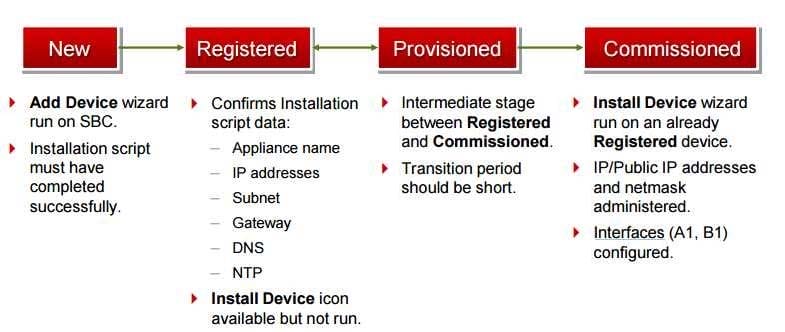

After the initial provisioning script has been run you see your Avaya Session Border Controller for Enterprise (SBCE) displaying a Registered state in the Web GUI. You click on the install link in the EMS System Management > Devices menu to continue the installation. After displaying a status of Provisioning for a short while, which status does the SBCE display?
A. Commissioned
B. Up
C. Busyout
D. Maintenance-Busy
From a remote worker's SIP Endpoint connected via Mobile Workspace, which tool is used to trace the successful way through Avaya Session Border Controller for Enterprise (SBCE) of an Invite message?
A. traceRT
B. traceSM
C. traceMW
D. traceSBC

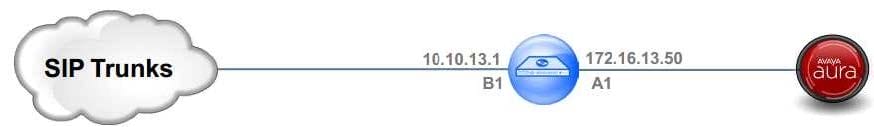

A company is deploying Avaya Session Border Controller for Enterprise (SBCE) to support SIP trunking. What is the minimum number of IP-addresses they need to assign to the private and public Network Interface Cards (NICs)?
A. Two addresses are assigned to the private NIC and two addresses are assigned to the public NIC.
B. One address is assigned to the private NIC and one address is assigned to the public NIC.
C. Two addresses are assigned to the private NIC and one address is assigned to the public NIC.
D. One address is assigned to the private NIC and two addresses are assigned to the public NIC.
In Avaya Session Border Controller for Enterprise (SBCE) 7.x, which two configuration screens must be configured for Personal Profile Management (PPM) to be successfully downloaded to an Avaya SIP Telephone (AST)? (Choose two.)
A. PPM Services Mapping Profile
B. Application Relay C. File Transfer
D. Reverse Proxy
You are setting up the SIP connection between Avaya Aura Messaging (AAM) and the Avaya Aura Core,
and the information you have entered for the Far-end connection is:
What should you conclude from all this information?
A. The connection cannot work because 5061 is not the Well-known port corresponding to TLS by standard.
B. There will be conflicts in the TLS connections given that 5061 is a well-known port that other Endpoints and Servers use within the same network.
C. A Security Certificate from the same Certificate Authority as the other Avaya Aura components, must be installed on the AAM Server to guarantee successful TLS Connections.
D. The IP address is wrong because its range does not correspond to a valid TLS-compatible IP address.
When configuring a SIP Entity for Avaya Aura Messaging (AAM) in Avaya Aura System Manager, which Type of SIP entity needs to be selected?
A. Messaging
B. Avaya Aura Messaging
C. Communication Manager Messaging
D. Other
In Avaya Aura System Manager, how is Avaya Aura Messaging (AAM) added to the list of Managed Elements?
A. It is added when you configure the AAM SIP Entity in SMGR.
B. It is automatically added during the enrollment process.
C. It can only be manually added.
D. It is automatically added using initTM 璮 command on the Command Line Interface of AAM.
Which three functionalities does WebRTC provide? (Choose three.)
A. NAT / Firewall Traversal
B. adds click-to-call capabilities from a web application to an Avaya endpoint
C. Internet-friendly codecs and Privacy
D. real-time audio and video conferencing
The WebRTC snap-in needs to be loaded on which of Avaya BreezeTM cluster?
A. Context Store EDP Cluster
B. Core Platform EDP Cluster
C. General Purpose EDP Cluster
D. Work Assignment EDP Cluster
In which location is the AAMS URI `[email protected]' configured?
A. Elements > Breeze > Configuration > HTTP Security and as a Regular Expression
B. Elements > Breeze > Configuration > HTTP Security and as a Dial Pattern
C. Home > Elements > Breeze > Configuration > Avaya Aura Media Server and as a Dial Pattern
D. Home > Elements > Breeze > Configuration > Avaya Aura Media Server and as a Regular Expression
Which statement about Avaya Aura Presence Services 7.x snap-in licensing is true?
A. It requires an instance-license.
B. It requires a per-user license.
C. It does not require a license to work.
D. It requires a license file for each snap-in installed.
Which statement about the SIP Entities to support Avaya Aura Presence Services is true?
A. Only one SIP Entity is built of Type = "Presence Services", which uses the SM100 IP address of the Avaya BreezeTM node.
B. Only one SIP Entity is built of Type = "Engagement Development Platform", which uses the SM100 IP Address of the Avaya BreezeTM node.
C. Two SIP Entities are built to the same SM100 IP address of each node. One is of Type = "Engagement Development Platform", and the other is of Type = "Other".
D. Two SIP Entities are built to the same SM100 IP address of each node. One is of Type = "Engagement Development Platform", and the other is of Type = "Presence Services".
Which statement about enabling IM and Presence for a user is true?
A. In SMGR, edit the Communication Profile of the user to assign an Avaya E.164 handle and check the Presence profile checkbox.
B. In SMGR, edit the Communication Profile of the user to assign an Avaya SIP handle and check the Presence profile checkbox.
C. In SMGR, edit the Communication Profile of the user to assign a XMPP handle and check the Presence profile checkbox.
D. In SMGR, edit the Communication Profile of the user to assign an Avaya Presence/IM handle and check the Presence profile checkbox.
You are starting the process to create a server certificate so it can be installed in the Avaya Session
Border Controller (SBC).
What must be done before creating a server certificate for SBC?
A. Generate a Certificate Signing Request (CSR) in SBC.
B. Run initTM -d from SBC CLI.
C. Add End Entity in Session Manager.
D. Download a CA PEM file from System Manager.
Avaya Aura Presence Services 7.x is implemented on Avaya BreezeTM (formerly Engagement
Development Platform (EDP)).
When looking at Elements > Breeze > Service Management > Services, which status would you expect for
a Presence Services snap-in that is ready to support Avaya Aura Presence Services?
A. Accepting
B. Loaded
C. Installed
D. Active
