300-810 Online Practice Questions and Answers

DRAG DROP

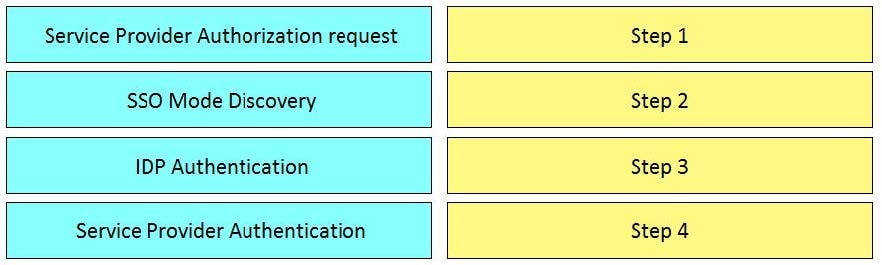

Drag and drop the steps for SAML SSO authentication from the left into the order on the right.

Select and Place:

An engineer is working on a cisco unity Express system and notices that users that exist on the integrated cisco UCME are missing from Cisco Unity Express. Which two actions using the GUI resolve this discrepancy? (Choose two)

A. Use the Synchronize task under the User ID field.

B. Use the Synchronize System under MWI

C. Use the Synchronize Information under Administration

D. Import the users using a CSV file.

E. Add the missing users manually to Cisco Unity Express

An engineer Is troubleshooting an MWI Issue between Unity Express and CallManager Express. In the debug SIP logs, the engineer can see CallManager Express responding to Unity Express with a 488 Not Acceptable Media message. Which action resolves the issue?

A. Ensure that codec G.722 Is configured In the dial peer.

B. Ensure that codec G.711ulaw is configured in the dial peer.

C. Ensure that codec G.711alaw is configured In the dial peer.

D. Ensure that codec G.729 is configured In the dial peer.

Which Cisco Unified Connections Manager service is required for users to control their desk phones using Cisco Jabber?

A. Cisco CTIManager

B. Cisco CTL Provider

C. Cisco Presence Engine

D. Cisco Serviceability Reporter

Refer to the exhibit.

Users report that they are prompted to accept server certificates when they initially run Cisco Jabber. An engineer removes these prompts to prevent confusion. Which statement about this scenario is true?

A. Presentation of the certificates can be disabled by setting up Cisco IMandP servers into nonsecure mode.

B. Nothing can be done to resolve this issue because certificates must be accepted by each Jabber user, per Cisco policy.

C. These certificates are self-signed certificates, so they must be added manually to the user OS certificate stores.

D. The behavior is a security breach because certificates are considered untrusted and as not coming from Cisco Collaboration servers.

Which SSO authentication method requires no action from the user when the session token times out?

A. web form

B. smart card

C. external database

D. local authentication

SAML SSO is enabled in Cisco Unified Communications Manager. What happens when a browser-based client attempts to access a protected resource on a service provider?

A. The browser follows the redirect and issues an HTTPS GET request to the IdP.

B. The IdP checks for a valid browser session.

C. The service provider generates a SAML authentication request.

D. The SAML request is maintained as a query parameter in the GET request.

Refer to the exhibit.

Which action allows a remote Cisco Jabber user utilizing Mobile and Remote Access to automatically log in to a Cisco Unity Connection voicemail box via OAuth?

A. Add CUCM under System Settings > Authz Servers in Cisco Expressway-E.

B. Add CUCM under System Settings > Authz Servers in Cisco Expressway-C.

C. Add CUCM under System Settings > Authz Servers in Cisco Unity.

D. Add CUCM under System Settings > Authz Servers in Cisco Unity Connection.

Users report that they are unable to check voicemail. and an engineer discovers that the voicemail system is not routing calls between Cisco Unity Connection and Cisco UCM via SCCP

Which action should be taken to resolve this issue?

A. Verify registration of the CTI ports.

B. Verify OPTIONS Ping in the SIP trunk profile.

C. Verify voicemail SIP trunk in the route list.

D. Verify Calling Search Space in the Directory Number setting.

An engineer must configure open SIP Federation on cisco IM and presence using cisco Expressways with the additional requirement not to allow a specific list if domains and allow all other domains that are not specified. How is this additional requirement met?

A. Configure default static routes for each blocked domain with an invalid next-hop IP address.

B. Add a static route for each blocked domain and keep the "Block Route" checkbox checked.

C. Block the specified SIP domains on the Expressway

D. Add each allowed domain as a SIP Federated domain.

Refer to the exhibit.

Which protocol is used for communication between Cisco IM and Presence and Microsoft Exchange Server?

A. POP3

B. IMAP

C. EWS

D. XMPP

Refer to the exhibit.

Cisco Unity Connection and Cisco Unified Communications Manager are integrated by using SCCP. The Voice Mail Ports are registered. Users report that calls fail when forwarded to voicemail. Which is a cause of the issue?

A. The call forward and call pickup settings do not have a CSS on Forward All.

B. The Voice Mail Port partition on the CSS of the phone is missing.

C. The Voice Mail Pilot is not configured with a CSS that contains the INTERNAL_PT.

D. The CSS on the Voice Mail Pilot is missing partitions for user phones.

Refer to the exhibit.

Troubleshooting an internal Jabber login issue and you see this logging snippet from the Jabber PRT file. You already checked that the Jabber client has a connection to the correct DNS server. Which DNS record is missing for service discovery of Cisco Unified Communications Manager for the login process to proceed further?

A. A record for the Cisco Unified Communications Manager

B. SRV record _cisco-uds._tcp.example.com

C. A record _cuplogin._tcp.example.com

D. SRV record _cuplogin._tcp.example.com

A collaboration engineer is configuring service discovery for Cisco Jabber clients with an on-premises Cisco IM and Presence deployment Clients on the corporate network are working Clients on the public internet cannot locate the corporate services What must the engineer configure to enable service discovery for these clients?

A. Option A

B. Option B

C. Option C

D. Option D

Refer to the exhibit An engineer is troubleshooting a Cisco Jabber issue in Cisco UCM and validates that these configurations are correctly configured

Cisco UCM Service discovery Cisco UCM User authentication SOAP login Which protocol interactions between Cisco UCM and the Cisco IM and Presence servers must be validated next?

A. LDAP

B. XMPP

C. SCCP

D. SAML
