300-615 Online Practice Questions and Answers

Refer to the exhibit.

vPC between switch1 and switch2 is not working. Which two actions are needed to fix the problem? (Choose two.)

A. Match vPC domain ID between the two devices.

B. Configure IP address on the interface.

C. Activate VLANs on the vPC.

D. Configure vPC peer link and vPC peer keepalive correctly.

E. Configure one of the switches as primary for the vPC.

Refer to the exhibit.

When an engineer inserts 8-Gb Fibre Channel SFP port 15 on a Cisco UCS Fabric Interconnect, the port fails. What is causing this issue?

A. Port 15 is configured as an Ethernet port.

B. Port 15 is configured for 4-Gb Fibre Channel.

C. Port 15 is missing a license.

D. The polarity of the fiber cable is reversed.

An engineer is troubleshooting a custom AV pair that was created by a client on an external authentication server to map a read-only role for a specific security domain. Which AV pair solves the problem?

A. shell:domains=Security_Domain_1//Read_Role_1|Read_Role_2

B. shell:domains=Security_Domain_1/Write_Role_1|Read_Role_2

C. shell=Security_Domain_1/Read_Role_1|Read_Role_2

D. shell:domains=Security_Domain_1/Read_Role_1|Read_Role_2

Refer to the exhibit.

A Cisco UCS Director appliance that has the Cisco UCS Director Bare Metal Agent installed fails to boot from the PXE. TFTP and the Bare Metal Agents are running. Which action do you take to resolve the issue?

A. Restart the Cisco UCS Director Bare Metal Agent services.

B. Restart the TFTP service.

C. Reinstall the Cisco UCS Director Bare Metal Agent.

D. Reinstall TFTP.

In Cisco UCS Central you have a certificate that has the status set to Not Yet Valid. Which scenario could cause the issue?

A. The certificate field is empty.

B. The time is incorrectly synchronized.

C. The trusted point uses a bundled certificate that has a minimum depth of 10.

D. The certificate is issued by a different trusted point.

A customer reports that the Chassis Management Controller fails to receive chassis information from Cisco UCS Manager. Which set of steps resolves the issue?

A. 1) Verify that the IOM firmware and Cisco UCS Manager are at different software levels 2) Verify that at least two physical cables between the IOM and fabric interconnect function properly. 3) Check for runtime link down status 4) Reseat the affected IOM.

B. 1) Verify that the IOM firmware and Cisco UCS Manager are at the same software level. 2) Verify that at least one physical cable between the IOM and fabric interconnect functions properly. 3) Check for runtime link down status 4) Reseat the affected IOM.

C. 1) Verify that the IOM firmware and Cisco UCS Manager are at the same software level. 2) Verify that at least two physical cables between the IOM and fabric interconnect function properly. 3) Check for runtime link down status. 4) Reseat the affected IOM.

D. 1) Verify that the IOM firmware and Cisco UCS Manager are at different software levels. 2) Verify that at least one physical cable between the IOM and fabric interconnect functions properly. 3) Check for runtime link down status. 4) Reseat the affected IOM.

Refer to the exhibit.

A network engineer configures an authentication domain through an LDAP provider on the Cisco UCS Manager for users from different companies to log into their respective organizations created in the UCS Manager. The engineer tests the configuration and notices that any user has login access to any organization in the UCS Manager. Which action should be taken to resolve the issue?

A. Configure the Filter field with sAMAccountName=$company

B. Configure the Attribute field with the company

C. Configure the Attribute field with sAMAccountName=$company

D. Configure the Filter field with the company

Refer to the exhibit.

The script fails to bring up Ethernet 1/2 when Ethernet 1/1 goes down. Which change enables the script to run as intended?

A. Set the port VLAN

B. Include an action to manually shut down Ethernet 1/1

C. Add an action to configure the terminal

D. Configure an enable action

Refer to the exhibit.

A customer network uses OSPFv2 and MP-BGP protocols A network administrator installs a new Cisco Nexus Switch in the data center but experiences a BGP RIB failure Which action solves the issue?

A. Change the administrative distance of OSPF to 220

B. Configure the route as a BGP backdoor

C. Use a filter list for OSPF to filter both routes

D. Implement next-hop-self

Refer to the exhibit.

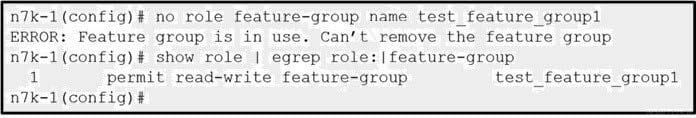

A network administrator must delete a feature group from a Cisco Nexus 5000 Series Switch. Which action resolves the issue?

A. Detach the association with the no rule command within the role configuration mode

B. Detach the association with the no role command within the feature-group configuration mode

C. Detach the association with the no rule command within the feature-group configuration

D. Detach the association with the no role command within the role configuration mode

Refer to the exhibit.

A client reports that the routing protocol neighborship fails to start between two Cisco Nexus switches, N9K-1 and N9K-2. Which action resolves the issue?

A. Add OSPF routing configuration to interface e1/1 on both Cisco Nexus switches

B. Configure a unicast access list to allow the negotiation between N9K-1 and N9K-2

C. Configure a multicast access list to allow the negotiation between N9K-1 and N9K-2

D. Add MTU configuration to interface e1/1 on both Cisco Nexus switches

A network engineer finds an error that says, "BIOS failed power-on self-test." When the engineer checks the console, they discover that the Cisco UCS Blade firmware upgrade process stopped at the "Configuring and testing memory" stage.

Which set of actions resolves the issue?

A. 1. Add the CIMC firmware on a server.

2. Initialize the CIMC firmware on a server.

B. 1. Update the BIOS firmware on a server.

2. Activate the BIOS firmware on a server

C. 1. Create a new host firmware package.

2. Assign the host firmware package to the service profile template.

D. 1. Upgrade the firmware on an adapter.

2. Enable the firmware on an adapter.

Refer to the exhibit.

The VXLAN fabric is deployed with this configuration:

1.

The VLAN 50 interface has no IP address on VTEP1 and VTEP4

2.

The VLAN 100 interface has no IP address on VTEP2 and VTEP3

3.

The nve1 interface is configured on all VTEPs

Host A experiences timeouts when attempting to ping host B. Which set of actions allows host A to reach host B?

A. On VTEP1, associate VNI 50000 to Test_Telco VRF On VTEP4, associate VNI 50000 to Test_Telco VRF

B. On VTEP2, associate VNI 30000 to Test_Telco VRF On VTEP4, associate VNI 20000 to Test_Telco VRF

C. On VTEP1, associate VNI 30000 to Test_Telco VRF On VTEP4, associate VNI 20000 to Test Telco VRF

D. On VTEP2, associate VNI 55000 to Test_Telco VRF On VTEP4, associate VNI 50000 to Test_Telco VRF

A network administrator adds several Cisco UCS C-Series servers to the existing Cisco UCS environment. Some of the servers fail to be discovered in Cisco UCS Manager. Which two actions resolve the issue? (Choose two.)

A. Enable fabric interconnect ports as appliance ports.

B. Place the VIC card in the correct PCIe slot.

C. Update the FEX software version.

D. Remove custom configurations from Cisco IMC.

E. Update the RAID software controller.

Refer to the exhibit.

The NetOevOps team is using REST API calls to automate the Cisco APIC monitoring. Which action resolves the issue?

A. Remove the attributes keyword from the message data.

B. Change the API request method to POST.

C. Modify the URI to http://apic1/api/aaaLogin.xml.

D. Use "double quotes" between each word in the message area.
