200-301 Online Practice Questions and Answers

DRAG DROP

Drag and drop the Rapid PVST+ forwarding slate actions from the loft to the right. Not all actions are used.

Select and Place:

DRAG DROP

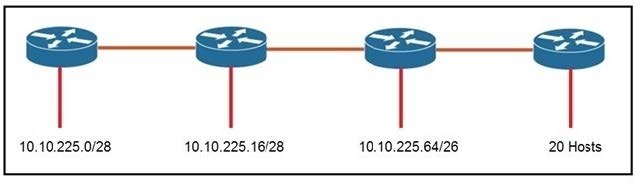

Refer to the exhibit. Drag and drop the subnet masks from the left onto the corresponding subnets on the right. Not all subnet masks are used.

Select and Place:

Which element of a virtualization solution manages virtualized services and enables connections between virtualized services and external interfaces?

A. software

B. network functionality

C. virtual machine

D. hardware

What are two disadvantages of a full-mesh topology? (Choose two.)

A. It requires complex configuration.

B. It needs a high MTU between sites.

C. It works only with BGP between sites.

D. It has a high implementation cost.

E. It must have point-to-point communication.

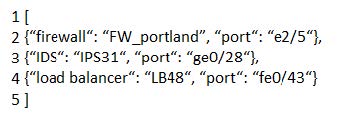

What is represented beginning with line 1 and ending with line 5 within this JSON schema?

A. key

B. object

C. array

D. value

Refer to the exhibit.

Which next-hop IP address has the least desirable metric when sourced from R1?

A. 10.10.10.5

B. 10.10.10.3

C. 10.10.10.4

D. 10.10.10.2

What does traffic shaping do to reduce congestion in a network?

A. buffers and queues packets

B. buffers without queuing packets

C. queues without buffering packets

D. drops packets

Which field within the access-request packet is encrypted by RADIUS?

A. authorized services

B. authenticator

C. username

D. password

Which networking function occurs on the data plane?

A. forwarding remote client/server traffic

B. facilitates spanning-tree elections

C. processing inbound SSH management traffic

D. sending and receiving OSPF Hello packets

Refer to the exhibit. For security reasons, automatic neighbor discovery must be disabled on the R5 Gi0/1 interface.

These tasks must be completed:

1.

Disable all neighbor discovery methods on R5 interface Gi0/1.

2.

Permit neighbor discovery on R5 interface GiO/2.

3.

Verify there are no dynamically learned neighbors on R5 interface Gi0/1.

4.

Display the IP address of R6*s interface GiO/2.

Which configuration must be used?

A. R5(config)#int Gi0/1 R5(config-if)#no cdp enable R5(config-if)#exit R5(config)#lldp run R5(config)#no cdp run R5#sh cdp neighbor detail R5#sh lldp neighbor

B. R5(config)#int Gi0/1 R5(config-if)#no cdp enable R5(config-if)#exit R5(config)#no lldp run R5(config)#cdp run R5#sh cdp neighbor R5#sh lldp neighbor

C. R5(config)#int Gi0/1 R5(config-if)#no cdp run R5(config-if)#exit R5(config)#lldp run R5(config)#cdp enable R5#sh cdp neighbor R5#sh lldp neighbor

D. R5(config)#int Gi0/1 R5(config-if)#no cdp enable R5(config-if)#exit R5(config)#no lldp run R5(config)#cdp run R5#sh cdp neighbor detail R5#sh lldp neighbor

What are two descriptions of three-tier network topologies? (Choose two.)

A. The distribution layer runs Layer 2 and Layer 3 technologies

B. The network core is designed to maintain continuous connectivity when devices fail

C. The access layer manages routing between devices in different domains

D. The core layer maintains wired connections for each host

E. The core and distribution layers perform the same functions

An engineer must configure Interswitch VLAN communication between a Cisco switch and a third- party switch. Which action should be taken?

A. configure IEEE 802.1p

B. configure IEEE 802.1q

C. configure ISL

D. configure DSCP

Which IPv6 address block sends packets to a group address rather than a single address?

A. 2000::/3

B. FC00::/7

C. FE80::/10

D. FF00::/8

Which two encoding methods are supported by REST APIs? (Choose two.)

A. SGML

B. YAML

C. XML

D. JSON

E. EBCDIC

Which type of address is the public IP address of a NAT device?

A. outside global

B. outsdwde local

C. inside global

D. insride local

E. outside public

F. inside public
