1Y0-402 Online Practice Questions and Answers

Scenario: A Citrix Architect needs to design a new XenApp and XenDesktop environment.

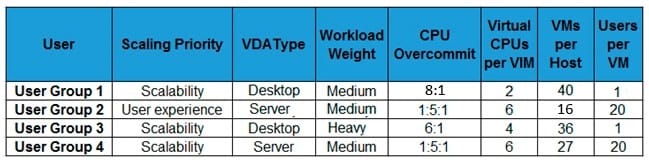

The architect has determined the user groups and FlexCast model listed in the Exhibit during the high-level design. Click the Exhibit button to view the user group and FlexCast model details.

Which graphics protocol should the architect select for the highlighted group in the Exhibit?

A. Thinwire (Legacy)

B. Framehawk

C. Thinwire+

D. H.264

Scenario: A Citrix Architect needs to redesign an existing XenApp and XenDesktop environment to use Machine Creation Services (MCS). During the design discussions, the locations for the MCS-provisioned thin clone machine disks are proposed as shown in the Exhibit.

Click the Exhibit button to view the details.

Which potential concern should the architect address with the customer before proceeding with this configuration? (Choose two.)

A. It is limited to NFS shared storage.

B. It will require substantial read IOPS from the shared storage location during machine creation and updates.

C. It will require substantial write IOPS to the shared storage location as temporary data is written.

D. It will require more storage to be allocated on the VM hosts compared with other options.

E. It is limited to certain hypervisors.

Scenario: A Citrix Architect has designed an active/passive XenApp and XenDesktop environment for a

customer, where the passive datacenter serves as the disaster recovery datacenter for all users.

The following has been configured:

NetScaler Global Server Load Balancing (GSLB) to provide single URL direction to the active datacenter.

GSLB has health monitors configured for the load balanced servers.

NetScaler Gateways are on both datacenters.

NetScaler load balancing occurs for StoreFront and Delivery Controller XML services.

A single XenApp and XenDesktop Site exists.

Four Delivery Controllers are members of the Site.

Two Delivery Controllers are members of the primary zone in the active datacenter.

Two Delivery Controllers are members of the satellite zone in the passive datacenter.

SQL is deployed in the active datacenter.

Local Host Cache is enabled.

Two StoreFront servers are deployed in each datacenter aggregating resources from the Delivery

Controllers in the respective datacenter.

Virtual Delivery Agent (VDA) machines are deployed in both datacenters and configured to register with

Delivery Controllers in their zone.

What would happen if the SQL Server in the primary datacenter were turned off?

A. VDA machines from the primary datacenter would register with the Delivery Controllers in the passive datacenter.

B. GSLB will NOT identify that the SQL Server is down and sessions cannot launch.

C. StoreFront in the primary datacenter would still be able to launch sessions.

D. GSLB will start redirecting connections to the secondary datacenter.

Scenario: A Citrix Architect needs to design a new XenApp and XenDesktop environment.

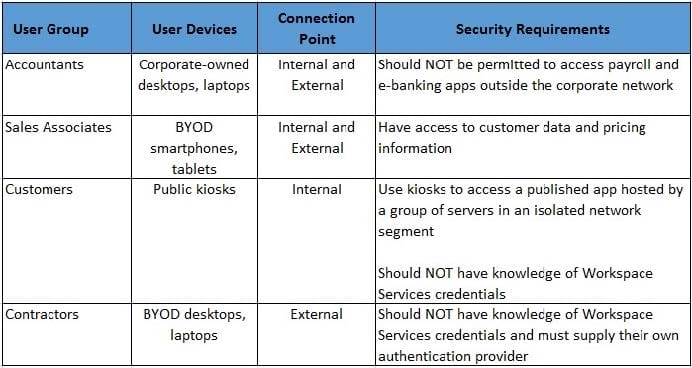

The architect has identified the User Layer requirements, as shown in the Exhibit. Click the Exhibit button to view the requirements.

Additionally, management at the organization has identified the following general Access Layer

requirements:

A multi-factor authentication method is required for any connections to the XenApp and XenDesktop

environment originating from outside the corporate network.

External connections must be authenticated by a NetScaler Gateway virtual server located in a DMZ

network.

Internal connection traffic should NOT leave the internal corporate network.

Which Access Layer feature should the architect configure to meet the security requirements of the

Accountants group?

A. SmartControl

B. Endpoint analysis scan

C. SmartAccess

D. Federated Authentication Service

Scenario: A Citrix Architect needs to design a new XenApp and XenDesktop environment. The customer is interested in using Machine Creation Services with App Layering in the environment.

Which consideration would result in the architect recommending that the customer use a different image and application management approach?

A. The environment must use XenApp Enterprise concurrent licensing.

B. PXE is required for non-Citrix machines in the networks which will support the Virtual Delivery Agent (VDA) machines.

C. Microsoft Hyper-V hosts must be used to host the Virtual Delivery Agent (VDA) machines.

D. The machines must use an existing SAN deployment.

E. The images must be deployed to physical machines.

Scenario: A Citrix Architect needs to design a new XenApp and XenDesktop environment.

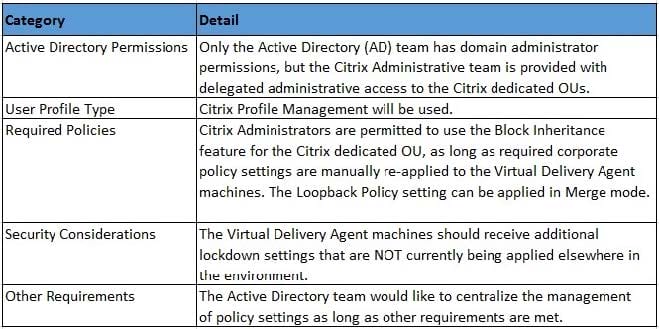

The architect has identified the Resource Layer requirements shown in the Exhibit.

Click the Exhibit button to view the requirements.

Which Citrix Profile Management feature can help the architect address the Accountants group requirements?

A. Profile streaming

B. File exclusions

C. File inclusions

D. Profile caching

Scenario: A Citrix Architect needs to manage the disaster recovery process for a XenApp and XenDesktop environment. The environment currently consists of an active datacenter which is typically accessed by used and a disaster recovery (DR) datacenter which would be used in the event that a disaster impacts the primary datacenter. The overall environment has been designed to actively replicate user data and application data from the primary datacenter recovery datacenter using Microsoft DFS-R. Management has made it a proirity to minimize the loss of data when failing over between datacenters. Due to an earthquake, the primary datacenter suffers a major outage that affects multiple components. Management has decided to fail over the DR datacenter, and the architect has blocked access to the primary datacenter to prevent new attempts to connect to the XenApp and XenDesktop Site there.

Which three actions must the architect perform to meet the company priorities before enabling access to the DR datacenter? (Choose three.)

A. Complete data replication from the primary datacenter to the DR datacenter.

B. Monitor the automated failover process.

C. Transport backup data repositories to the DR datacanter.

D. Codifier data replication from the DR datacenter to the primary datacenter.

E. Drain existing sessions from the primary datacenter.

F. Evaluate the condition of the XenApp and XenDesktop environment in the primary datacenter.

Scenario: A Citrix Architect needs to design a new XenApp and XenDesktop environment. Machine Creation Services has been selected for image management.

Which storage feature should the architect consider to lower storage cost with minimal impact to performance?

A. Read caching

B. Storage tiering

C. Thin provisioning

D. Data de-duplication

Scenario: A Citrix Architect needs to support a XenApp and XenDesktop environment with two datacenters. App Layering is being used to create Layered Images that are used by the Virtual Delivery Agent (VDA) machines in both datacenter locations. To comply with disaster recovery requirements, administrators must be able to modify and deploy Layered Images from either datacenter if needed.

Which statement correctly describes the process that the architect must follow to meet the requirements?

A. All required layers should be exported from the first Enterprise Layer Manager to an SMB file share, and then imported into the second Enterprise layer manager.

B. All required layers should be copied from the first Enterprise Layer Manager to the second Enterprise Layer Manager using robocopy commands.

C. All required layers should be copied from the first Enterprise Layer Manager to the second Enterprise Layer Manager using Microsoft DFS-R.

D. All required layers should be exported from the first Layer Manager using the hypervisor hosting the machine, then imported to the hypervisor resource pool in the secondary datacenter.

Scenario: A Citrix Architect is designing a XenDesktop environment. The Graphic Editors group uses a graphic-intensive and media-rich application. Graphic Editors will be provided with a Windows Server 2016 Desktop with NVIDIA graphics hardware acceleration. HDX 3D Pro and Server VDI options were selected during the command-line installation of the Virtual Delivery Agent (VDA).

Which limitation will affect the Graphic Editors group?

A. GPU acceleration of OpenGL

B. Support for a single user session per VDA

C. Support for H.264 graphics protocol

D. GPU acceleration of DirectX

Scenario: During an assessment of a Citrix Infrastructure, a Citrix Architect finds that there are four active Sites. Each Site has one Citrix ADC SDX pair and two StoreFront servers in a server group to allow access for internal and external users. Users have to use different URLs when they access resources from different Sites. Single-factor authentication is used for both internal and external access. Citrix ADC appliances are placed in the DMZ with the appropriate firewall ports configured to allow Citrix traffic. Endpoint scanning is being used to ensure that an updated antivirus client is installed on BYO devices. Many of the internal users connect using corporate-owned laptops and some external users also connect using their own devices.

Which two risks can the architect identify from this scenario? (Choose two.)

A. Separate URLs are used to access different Sites.

B. The Citrix ADC appliance is placed in the DMZ.

C. Personal devices are being used.

D. Single-factor authentication is used.

E. There is no automatic failover between different Sites.

Scenario: A Citrix Architect needs to design a new XenApp and XenDesktop environment. The customer has a number of small field sales offices, each connected to the main datacenter located in the headquarters building that has a 1.5 Mbps MPLS WAN link. Each field sales office has between 5 and 10 concurrent users connecting to the Citrix environment hosted in the main datacenter. The customer would like to ensure that print jobs are compressed as much as possible to reduce any poor user experience in the field offices.

Click the Exhibit button to view additional details about the environment.

What should the architect recommend for mapping the blue printer in the Exhibit?

A. Citrix Client Printer with OEM driver

B. Citrix Universal Print Server

C. Microsoft Group Policy Preference printer mapping

D. Citrix Client Printer with Universal print driver

E. Citrix Session Printer policy

Scenario: A Citrix Architect needs to design a new XenApp and XenDesktop environment. Currently, the

environment is configured with two locations with identical XenDesktop Sites. Each Site has two Delivery

Controllers, two StoreFront servers, and one NetScaler high availability pair. The same applications have

been published from both Sites for all the users. Two Zones (Zone A and Zone B) are configured in each

Site with one Controller in each zone. The Microsoft Exchange server is only accessible from Virtual

Delivery Agent (VDA) machines in Zone A in each Site.

The following access requirements have been identified:

Users should have a single URL when accessing resources from different Sites.

Users should always connect to the datacenter closest to their location.

Applications added to Favorites within Citrix Receiver should be retained when accessed from different

Sites.

Launched applications and desktops should always connect through a local NetScaler.

No duplication of applications published from different Sites.

Microsoft Outlook should always launch in Zone A.

In which mode should the architect recommend configuring Global Server Load Balancing (GSLB) to

ensure that a user always connects to the datacenter closest to their location?

A. Source IP hash

B. Dynamic RTT

C. Least response time

D. Static Proximity

Scenario: While assessing the User Layer, a Citrix Architect finds that most of the internal users connect using corporate-owned laptops, desktop devices, and thin clients. Many of these laptops and desktop devices are running Windows 10, while the remainder of the machines are running Windows 7 and are in the process of being migrated to Windows 10. Some users also connect using personal devices which have Receiver Desktop Lock installed.

Currently, Citrix Receiver is manually installed on any endpoint device added to the company. All these devices use Citrix Receiver version 4.8 and above. The IT team is planning to automate a process to update all the devices with the latest version of Citrix Receiver and to automate another process for automatic installation of Citrix Receiver without incurring extra costs and maintenance.

During the initial testing of the Citrix Receiver Auto-Update feature, the architect observed that the Citrix Receiver Auto-Update feature does NOT work on some of the machines.

Which two reasons could be causing this issue? (Choose two.)

A. Citrix Receiver Auto-Update is disabled on machines where Receiver Desktop Lock is installed.

B. The Citrix receiver Auto-Update feature needs to be configured before Receiver Desktop Lock is configured.

C. The user does NOT have local administrative permission on the endpoint device.

D. The local Advanced Preferences within Citrix Receiver were incorrectly configured.

Scenario: IT management has decided which server hardware model to use for new XenApp and XenDesktop Sites and needs guidance on sizing the Hardware Layer.

Click the Exhibit button to view the host details.

A Citrix Architect is planning to install XenServer 7.x on this host which will be used to host only XenApp servers.

How many XenApp servers can the architect deploy on the host if the plan includes allotting each XenApp server 4 vCPUs, considering the over subscription ratio?

A. 12

B. 4

C. 6

D. 8
